The pultrusion process is a continuous manufacturing technique used to produce FRP profiles with constant cross-sections. The steps involved include:

1. Reinforcement Feeding: Continuous strands of fiberglass rovings and mats are guided from creels into the process.

2. Resin Impregnation: The fiberglass reinforcements are pulled through a resin bath where they are thoroughly impregnated with a thermosetting resin, such as polyester, vinyl ester, or epoxy.

3. Pre-Forming: The saturated fibers are organized and shaped to approximate the final profile using a series of guides and pre-forming stations.

4. Curing in Heated Die: The formed fibers are pulled through a heated steel die, where the resin undergoes polymerization (curing), solidifying into the exact shape of the die.

5. Cutting to Length: The continuous profile exits the die and is cut to specified lengths to meet application requirements.

This process ensures consistent quality, high strength-to-weight ratios, and allows for the production of complex shapes with tight tolerances.

• Corrosion Resistance: Ideal for harsh environments where traditional materials would degrade.

• Lightweight: Easier handling and reduced transportation costs compared to metal counterparts.

• High Strength: Comparable to steel in strength but with significantly less weight.

• Non-Conductive: Suitable for applications requiring electrical insulation.

• Low Maintenance: Long service life with minimal upkeep.

FRP structural profiles are available:

• I-Beams: Commonly used in construction for structural support.

  • Available dimensions include:

    • Height: 100 mm to 300 mm

    • Flange Width: 50 mm to 150 mm

    • Web Thickness: 5 mm to 12 mm

• Angle Bars: Often utilized for framing and supports.

  • Sizes range from:

    • Leg Lengths: 50 mm x 50 mm to 150 mm x 150 mm

    • Thickness: 5 mm to 15 mm

• C-Channels: Used in structural applications and cable management systems.

  • Dimensions include:

    • Height: 50 mm to 200 mm

    • Flange Width: 30 mm to 75 mm

    • Web Thickness: 5 mm to 10 mm

• Square Tubes: Suitable for frameworks and supports.

  • Available sizes:

    • Outer Dimensions: 50 mm x 50 mm to 200 mm x 200 mm

    • Wall Thickness: 4 mm to 10 mm

Note: Custom profiles and sizes can be manufactured to meet specific project requirements.

FRP structural profiles are widely used in:

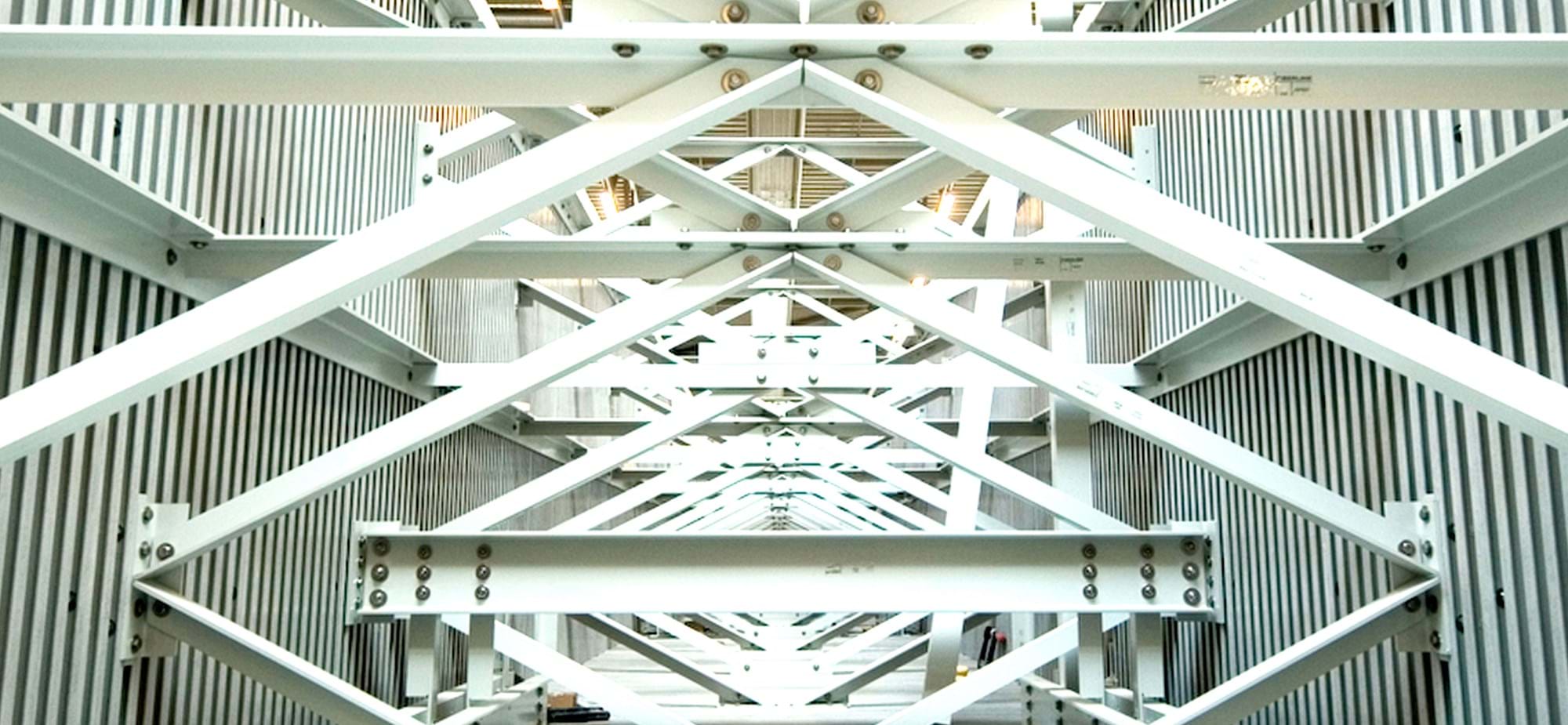

• Construction: Building frameworks, platforms, and supports

• Industrial: Walkways, handrails, and equipment supports.

• Marine: Docks, piers, and offshore structures.

• Utilities: Cable trays, ladders, and enclosures.
